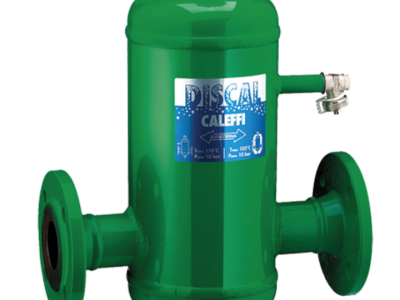

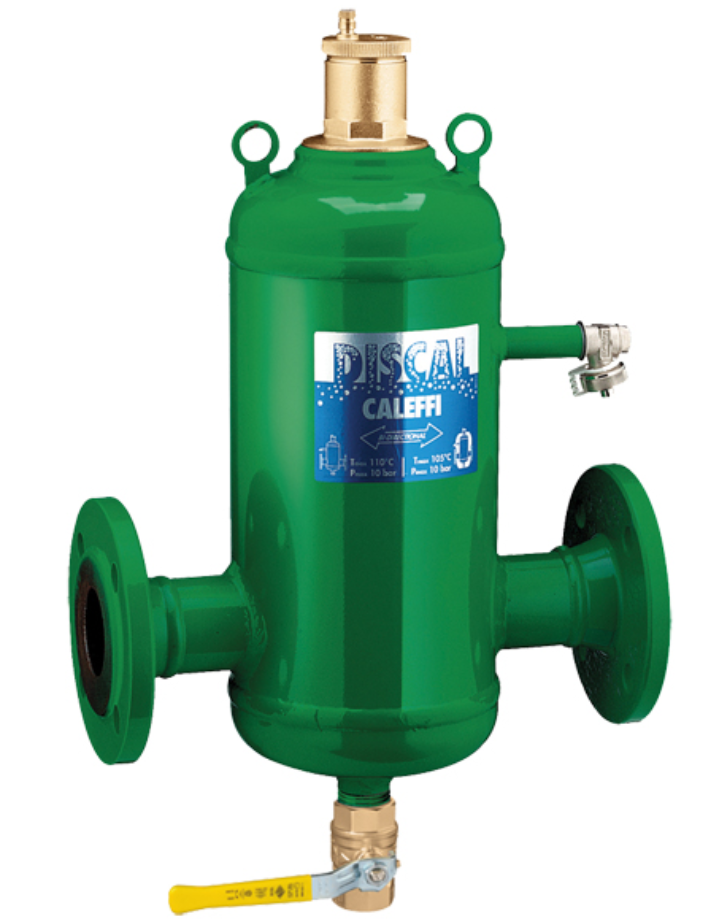

Caleffi 551080A Discal 3 inch Flanged Steel Micro-Bubble Type Air Separator
Item SKU - 551080A by Caleffi (EDP 985785)
Please Login for Pricing
Product Description
Epoxy resin coated steel body with automatic air vent containing pinned float - ANSI flanged connection - Peroxide cured EPDM seals - Type 304 stainless steel internal mesh element - Polypropylene float - Stainless steel float linkages and float guide pin - 1 inch male bottom outlet for drain less ball valve - Brass side drain port with integral brass shutoff valve with hose connection - 150 PSI maximum working pressure - 32 degrees to 270 degrees maximum working temperature range - Up to 50 percent maximum glycol antifreeze - 100 percent air separation removal to micro-bubble level
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
| Style |
|
|
| Size |
|
|
| Connection Type |
|
|
| Approximate Height (inches) |
|
|
| Approximate Length (inches) |
|
|
| Approximate Weight (pounds) |
|
|
| Approximate Width (inches) |
|
